Overload / Weight Violation Control

Overload / Weight Violation Control

Types of Weighing Systems

  • Permanent Type Slow Speed Weigh in Motion
  • Mobile / Portable Type Weigh in Motion
  • High Speed / Virtual Weigh in Motion

iSINC WIM Controller

Permanent Type-SSWIM

Freight Terminals, Data Collection for Pavement Design and Rehabilitation, Weight/Dimensions Violation Enforcement

Brief Overview: The slow speed weigh in motion scales manufactured by IRD offer superior weight enforcement, greater vehicle throughput and excellent stability of operations. The development of iSINC Lite Electronics the heart of IRD’s core system technologies- is a tremendous achievement towards ITS Industry, that allows for greater flexibility, modularity, self diagnostics and expandability in the competitive world of weighing equipment.

This single controller can integrate variety of sensors in receiving their inputs and then controlling multiple hardware modules yet in absolute modular fashion. IRD’s SSWIM Scale boasts a design to the true spirit of ASTM 1318 that knocks down axial (lateral) forces with no mechanical movements, less number of sensors and hence exhibits very low maintenance over its life cycle.

SSWIM Scale In-Road Sensor

Mobile/Portable Type-SSWIM

Portable/ Mobile Weighing Systems

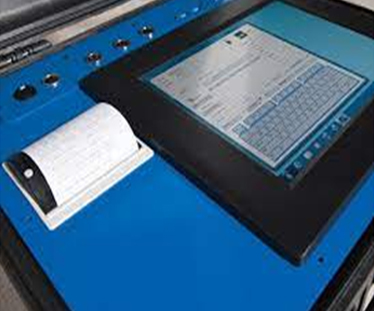

Applications: IRD’s Dy-SAW and DAW300 PC equipment has revolutionized the world of mobile weighing in Weight Enforcement applications. These systems may be used in Dynamic or Static Mode in completely portable or semi-permanent installations.

Larger weighing surface and simple design of Bending Plates are the key attributes of an intelligent built to cover increased weighing capacity and performance requirements. PC based application is as simple as ready-to-go in its easy set-up, configuration of all vehicle classes and display of per-vehicle information like speed, wheel loads, axle weight and GVW information as per international standards.

The Dy-SAW (the dynamic and static) is one of the recent developments in IRD’s SAW Series of Wheel Load Weighers which holds OIML certification to its credit in the respective accuracy class desired by enforcement agencies.

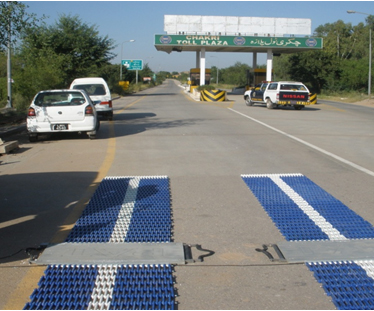

.                                                        Fig: Portable Weighing Scale Layout at Motorway M-2 Entry Point

Permanent Full Deck Static Scale

Full Deck Static Weighbridges (Pitless, Semi-Pit and Pit Types)

Application: Industrial weighing in Legal-For-Trade applications, GVW violation and Citation. The weighing industry is very much familiar with weighing complete vehicle/ Truck in one-go. These scales are used in variety of applications with major use in industrial, commercial and enforcement weighing applications.

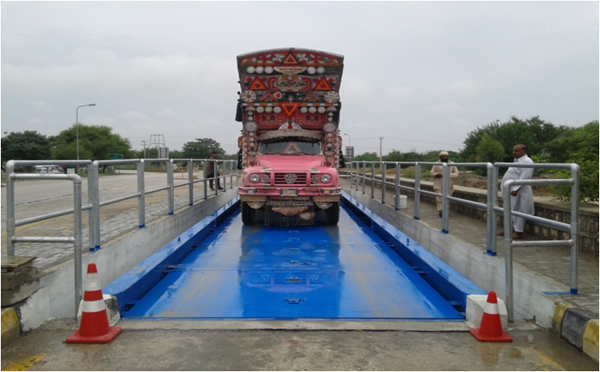

Fig: Full Deck Steel Weighbridge (Semi-Pit Type) at Balkassar Interchange M-2
